CFMOTO CFORCE 1000 T3B 2018-23 FRONT AXLE (F31)

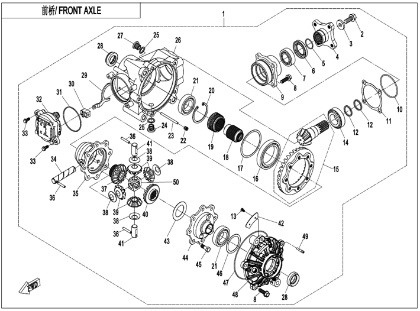

Picture for category Front Axle (F31)
  1
Q830-310000-70000

FRONT GEAR CASE ASSY

  2
0GR0-062203

BOLT M10x1.25x20

  3
0GR0-062204

WASHER 10x27.5x4

  4
9CR6-300201-10000

DRIVE SLEEVE, ENGINE

  5
0800-062205

O-RING

  6
0800-062204

OIL SEAL 35x50x7

  7
30409-02500

BEARING

  8
0110-060011-0010

REPL BY 0JYA-062104

  9
Q830-311002-00001

BEARING SEAT

  10
Q830-310006-10000

O-RING 55x2.5

  11
Q830-310023-00100

ADJUSTING WASHER T=0.20

  11
Q830-310023-00200

ADJUSTING WASHER T=0.30

  12
Q830-311003-00100

ADJUSTING WASHER 32x25.4 T=2.10

  12
Q830-311003-00300

ADJUSTING WASHER 32x25.4 T=2.30

  12
Q830-311003-00400

ADJUSTING WASHER 32x25.4 T=2.40

  12
Q830-311003-00500

ADJUSTING WASHER 32x25.4 T=2.42

  12
Q830-311003-00600

ADJUSTING WASHER 32x25.4 T=2.44

  12
Q830-311003-00700

ADJUSTING WASHER 32x25.4 T=2.46

  12
Q830-311003-00800

ADJUSTING WASHER 32x25.4 T=2.48

  12
Q830-311003-00900

ADJUSTING WASHER 32x25.4 T=2.50

  12
Q830-311003-01000

ADJUSTING WASHER 32x25.4 T=2.60

  12
Q830-311003-01100

ADJUSTING WASHER 32x25.4 T=2.70

  12
Q830-311003-01200

ADJUSTING WASHER 32x25.4 T=2.80

  12
Q830-311003-01300

ADJUSTING WASHER 32x25.4 T=2.90

  12
Q830-311003-01400

ADJUSTING WASHER 32x25.4 T=3.00

  12
Q830-311003-00200

REPL BY Q830-311003-00201

  13
30105-040008410

SCREW M4x8

  14
30409-03000

BEARING

  15
Q830-3100B0

BEVEL GEAR ASSY, FRONT GEAR CASE

  16
30400-05500

BEARING

  17
Q830-310015-00100

ADJUSTING WASHER 79.5x68 T=0.10

  17
Q830-310015-00200

ADJUSTING WASHER 79.5x68 T=0.20

  17
Q830-310015-00300

ADJUSTING WASHER 79.5x68 T=0.30

  17
Q830-310015-00400

ADJUSTING WASHER 79.5x68 T=0.40

  17
Q830-310015-00500

ADJUSTING WASHER 79.5x68 T=0.50

  17
Q830-310015-00600

ADJUSTING WASHER 79.5x68 T=1.00

  18
Q830-310014

DRIVE CLUTCH COVER

  19
Q830-310013

SPLINE BUSHING

  20
30800-05505

CIRCLIP FOR HOLE 55

  21
30400-03001

BEARING 30x55x13

  22
30130-080010820

REPL BY 30130-080010810

  23
Q830-310003

PIN SHAFT

  24
0180-332100

OIL DRAIN BOLT M14x1.25x12, MAGNETIC

  25
0180-011006

GASKET CFMOTO 14mm

  26
Q830-310007-10001

REPL BY Q830-310007-20000

  27
0180-021008-0010

REPL BY 0180-021008-00001

  28
0180-311001

OIL SEAL 24x38x8

  29
Q830-310005-10000

FORK

  30
Q890-310010

BLOCK ASSY.

  31
Q830-310012-10000

O-RING 67.5x2
