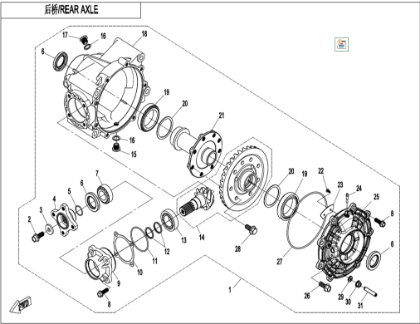

CFMOTO Z-FORCE 550 T1A 2018-22 REAR AXLE (NO DIFFERENTIAL) (F33-B-V3)

Bild för kategori Bakaxel (ingen differential) (F33-B-V3)
  1
Q860-330000-40002

REPL BY Q860-330000-40003

  2
0GR0-062203

BOLT M10x1.25x20

  3
0GR0-062204

WASHER 10x27.5x4

  4
Q850-331002

COUPLER

  5
0800-062205

O-RING

  6
0800-062204

OIL SEAL 35x50x7

  7
30409-02500

BEARING

  8
0110-060011-0010

REPL BY 0JYA-062104

  9
Q830-311002-00001

BEARING SEAT

  10
Q830-310023-00100

ADJUSTING WASHER T=0.20

  10
Q830-310023-00200

ADJUSTING WASHER T=0.30

  11
Q830-310006-10000

O-RING 55x2.5

  12
Q830-311003-00100

ADJUSTING WASHER 32x25.4 T=2.10

  12
Q830-311003-00300

ADJUSTING WASHER 32x25.4 T=2.30

  12
Q830-311003-00400

ADJUSTING WASHER 32x25.4 T=2.40

  12
Q830-311003-00500

ADJUSTING WASHER 32x25.4 T=2.42

  12
Q830-311003-00600

ADJUSTING WASHER 32x25.4 T=2.44

  12
Q830-311003-00700

ADJUSTING WASHER 32x25.4 T=2.46

  12
Q830-311003-00800

ADJUSTING WASHER 32x25.4 T=2.48

  12
Q830-311003-00900

ADJUSTING WASHER 32x25.4 T=2.50

  12
Q830-311003-01000

ADJUSTING WASHER 32x25.4 T=2.60

  12
Q830-311003-01100

ADJUSTING WASHER 32x25.4 T=2.70

  12
Q830-311003-01200

ADJUSTING WASHER 32x25.4 T=2.80

  12
Q830-311003-01300

ADJUSTING WASHER 32x25.4 T=2.90

  12
Q830-311003-01400

ADJUSTING WASHER 32x25.4 T=3.00

  12
Q830-311003-00200

REPL BY Q830-311003-00201

  13
30409-03000

BEARING

  14
Q860-3300A0-00002

BEVEL GEAR ASSY, REAR GEAR CASE

  15
0180-332100

OIL DRAIN BOLT M14x1.25x12, MAGNETIC

  16
0180-011006

Oljepluggspackning 14X21mm CFMOTO

  17
0180-021008-0010

REPL BY 0180-021008-00001

  18
Q860-330001-00002

REAR GEAR CASE

  19
30409-05000

BEARING

  20
Q820-330003-00100

ADJUSTING WASHER 61x50.5 T=0.10

  20
Q820-330003-00200

ADJUSTING WASHER 61x50.5 T=0.30

  20
Q820-330003-00300

ADJUSTING WASHER 61x50.5 T=0.50

  20
Q820-330003-00400

ADJUSTING WASHER 61x50.5 T=0.90

  20
Q820-330003-00500

ADJUSTING WASHER 61x50.5 T=0.92

  20
Q820-330003-00600

ADJUSTING WASHER 61x50.5 T=0.94

  20
Q820-330003-00700

ADJUSTING WASHER 61x50.5 T=0.96

  20
Q820-330003-00800

ADJUSTING WASHER 61x50.5 T=0.98

  20
Q820-330003-00900

ADJUSTING WASHER 61x50.5 T=1.00

  21
Q850-330003-00001

MOUNTING BASE

  22
30105-040008410

SCREW M4x8

  23
Q830-310022

OIL GUARD

  24
0180-311004-0020

JOINT, BREATHER HOSE

  25
Q860-330002-00003

REAR GEAR CASE COVER

  26
0180-330004-0010

REPL BY 30001-102025810

  27
0180-334002

O-SEAL RING 151x3

  28
0181-313100-0010

BOLT M10x1.25x22
