TRANSMISSION SYSTEM (2) (E06-2-V2)

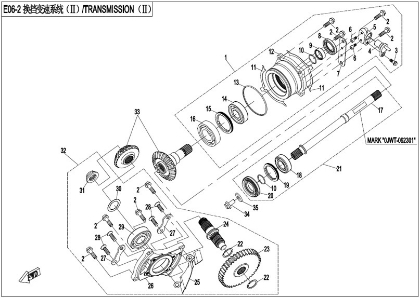

Bilde for kategori TRANSMISSION SYSTEM (2) (E06-2-V2)
  1
0800-0622B0

REPL BY 0800-0622B0-00001

  2
0JYA-062104

BOLT M8x28

  3
30001-060014810

BOLT M6x14

  4
7020-150400

SPEED SENSOR

  5
0800-062208

SEAT, SPEED SENSOR

  6
30102-050012810

SCREW

  7
0800-062209

PLATE, SPEED SENSOR

  8
0800-062204

OIL SEAL 35x50x7

  9
0800-062201

SHAFT SLEEVE, OUTPUT SHAFT

  10
0800-062205

O-RING

  11
0800-062203

ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.1

  11
0800-062203-0001

ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.2

  11
0800-062203-0002

ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.3

  11
0800-062203-0003

ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.4

  11
0800-062203-0004

ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.5

  12
0800-062202-1000

REPL BY 0800-062202-10001

  13
0180-062205

O-SEAL RING 88x2.5

  14
30400-02502

BEARING

  15
0800-062206

STOPPER NUT, BEARING

  16
30400-03500

BEARING

  17
0JWT-062301-10000

FRONT OUTPUT SHAFT

  18
30400-02501

BEARING

  19
0180-060008

BEARING RETAINER, FRONT OUTPUT SHAFT

  20
0JWA-062302

REPL BY 0JWA-062302-00001

  21
0JWT-062300-10000

FRONT OUTPUT SHAFT ASSY

  22
0180-061007-0050

CIRCLIP 25

  23
0800-062102

OUTPUT DRIVEN GEAR

  24
0800-062101

DRIVE BEVEL GEAR SHAFT

  25
0800-062108

RETAINING PLATE

  26
0800-062103

BEARING SEAT, DRIVE BEVEL GEAR

  27
0180-062104-0010

LIMITATOR, BEARING

  28
30124-080025810

SCREW M8x25

  29
30499-02501

BEARING

  30
0180-062105

ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.15

  30
0180-062105-0001

ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.2

  30
0180-062105-0002

ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.25

  30
0180-062105-0004

ADJUSTING WASHER, DRIVE SHAFT GEAR

  30
0180-062105-0003

ADJUSTING WASHER, DRIVE SHAFT GEAR

  31
0180-062107-0010

REPL BY 0180-062107-00001

  32
0800-0621B0

DRIVE BEVEL GEAR ASSY

  33
0800-0622A0-00001

BEVEL GEAR ASSY

  33
0800-0622A0

REPL BY 0800-0622A0-00001

  34
0JWA-060002

REPL BY 0JWA-060002-00001

  35
0GR0-062204

WASHER 10x27.5x4
