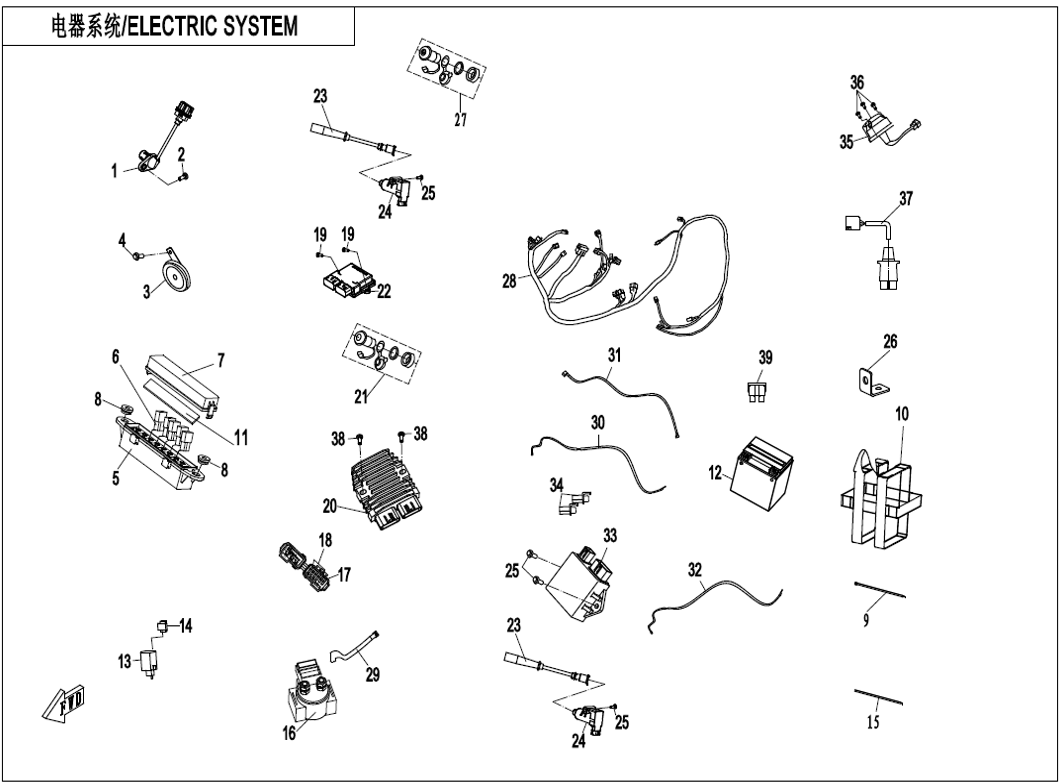

CFMOTO CFORCE 850 ELECTRIC SYSTEM (F15-1-V2)

1

7020-150400

SPEED SENSOR

553,20 kr

2

30006-060020810

BOLT

32,13 kr

3

5020-150700

ELECTRIC HORN

210,84 kr

4

30006-060016810

BOLT

32,13 kr

5

7020-040411

RELAY BOX

140,56 kr

6

9010-150350

AUXILIARY RELAY

140,56 kr

7

7020-040412-10000

COVER,RELAY BOX

140,56 kr

8

0180-015003

Gummi hylsa CF Moto

32,13 kr

9

9010-150004

TIE BAND

32,13 kr

10

9060-152100

BELT, BATTERY

116,46 kr

11

7020-040414

RUBBER WASHER, RELAY BOX COVER

56,22 kr

12

31023004

REPL BY BAT-YTX30

4 412,53 kr

13

9AWA-150340-10000

FLASHER

261,04 kr

14

8010-150002

CUSHION WASHER, FLASHER

32,13 kr

15

8010-150003

TIE

32,13 kr

16

9CR6-150310

Startrelä CF Moto

361,44 kr

17

806A-151302

FUSE 10A

68,27 kr

18

806A-151303

REPL BY 806A-151305

140,56 kr

19

30006-060030810

BOLT

32,13 kr

20

0800-177000-30000

REPL BY 9DSV-151000-4000

2 664,59 kr

21

9GQ0-150500-20000

POWER OUTLET SOCKET

351,40 kr

22

0JWA-174000-10000

ECU CF850XC TB LIMITED

4 583,21 kr

23

0800-179100

REPL BY 0800-179100-10000

291,16 kr

24

0800-178000

IGNITION COIL SUB ASSY

983,91 kr

25

30006-060035810

BOLT

32,13 kr

26

7020-038002

BRACKET, FUSE BOX

44,18 kr

27

9GQ0-150600-20000

USB OUTLET SOCKET

471,88 kr

28

9AWA-150100-F0003

MAIN CABLE

6 341,20 kr

29

9AWA-150220

CABLE,STARTING MOTOR

634,52 kr

30

9AWA-150230

NEGATIVE WIRE,BATTERY

489,95 kr

31

9AWA-150210-20000

POSITIVE WIRE,BATTERY

271,08 kr

32

9AWA-150240-10000

NEGATIVE CABLE, STARTER MOTOR

522,07 kr

33

9AWA-150880-20000

DRL CONTROLLER

927,69 kr

34

6090-150500

DIODE, STARTER

56,22 kr

35

7020-150800-20000

TAILER POWER SOCKET

491,95 kr

36

30105-050030410

SCREW M5x30

32,13 kr

37

9010-151020

ADAPTOR SEAT, TRAILER POWER

411,64 kr

38

30006-060025810

BOLT

32,13 kr

39

CFC#-150005-4504

FUSE 60A

44,18 kr

Elektrisk system (F15-1-V2)
