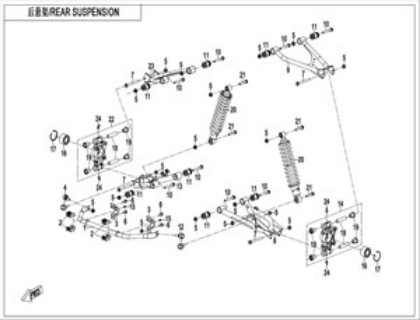

Merafritid.se. CFMOTO CFORCE 520L REAR SUSPENSION

1

9DQV-060610-3000

REAR SWAY BAR ASSY

€82,22

2

9GQ0-060003

SUPPORTER, SWAY BAR

€7,98

3

9GQ0-060601-00001

COVER, SWAY BAR

€5,90

5

30204-102810

NUT M10X1.25

€2,78

6

30006-080016810

BOLT

€2,78

7

30006-102100810

BOLT M10x1.25x100

€4,86

8

9DQV-060210-3000-0BP

REAR LH LOWER SWING ARM ASSY

€111,36

9

9DQV-060110-3000-0BP

REAR LH UPPER SWING ARM ASSY

€75,11

10

30006-102070810

BOLT M10x1.25x70

€3,82

11

9DQV-050900-3000

DAMPING SLEEVE ASSY

€11,10

13

9DQV-060410-3000-0BP

REAR RH LOWER SWING ARM ASSY

€111,36

14

7020-0607B0

LH REAR BEARING CARRIER ASSY

€176,58

15

3120100

GREASE ZERK

€3,82

16

9GQ0-050710

BEARING, HUB

€50,13

17

30800-05505

CIRCLIP FOR HOLE 55

€3,82

18

7020-060702-00001

MIDDLE SPACER, REAR BEARING CARRIER

€9,02

19

5ASV-050002-6001

SHORT BUSHING

€11,10

20

9DQV-060500-3000

REPL BY 9DQV-060500-4000

€216,65

21

30006-102055810

BOLT M10x1.25x55

€4,86

22

7020-0608B0

RH REAR BEARING CARRIER ASSY

€175,37

23

9DQV-060310-3000-0BP

REAR RH UPPER SWING ARM ASSY

€75,11

24

3121401

GREASE ZERK

€3,82
