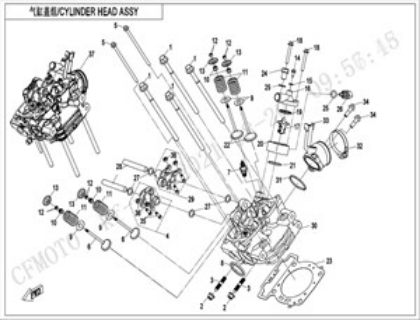

Merafritid.se. CFMOTO CFORCE 520 2025 CYLINDER HEAD

1

0800-021002-00001

SEAL RING, CYLINDER HEAD COVER

€14,74

2

8010-020001

NUT M8, MUFFLER JOINT

€2,78

3

0180-022003-00001

STUD

€3,82

4

0800-022600-20000

ROCKER ARM ASSY, AIR EXHAUST

€60,28

5

0GR0-022002-00001

BOLT M6x132

€2,78

6

0800-022005

VALVE, EXHAUST

€26,89

7

0800-022800

SPARK PLUG

€12,40

8

0800-022300

BUSHING, EXHAUST PIPE

€11,10

9

0800-022008

LOWER SEAT, VALVE SPRING

€2,78

10

0010-022500-10000

SEAL RING, VALVE STEM

€4,86

11

0800-022006-10001

VALVE SPRING

€6,94

12

0800-022016

LOCK CLIP, VALVE

€5,90

13

0800-022007

UPPER SEAT, VALVE SPRING

€5,90

14

30132-550160030

SCREW ST5.5x16

€2,78

15

0800-022011-00001

WASHER 5.3x11x1.5

€2,78

16

0800-022013-10000

THERMOSTAT CAP

€12,14

17

0800-022700

THERMOSTAT

€26,89

18

0180-013208-0010

BOLT M6x45

€2,78

19

0010-022802

SEAL RING

€3,82

20

0GR0-022003

SEAT, THERMOSTAT

€11,27

21

30502-028000N

O-RING

€3,82

22

0800-022004

VALVE, INTAKE

€18,21

23

0800-022200-00002

GASKET, CYLINDER HEAD

€31,22

24

0800-022015-00001

SCREW PLUG M12x1.5

€3,82

25

0800-022014

WASHER 12.2x18x1.5

€3,82

26

018B-022810

WATER TEMPERATURE SENSOR

€46,23

29

0800-022500-20000

ROCKER ARM ASSY, AIR INTAKE

€57,94

30

0JY0-022100-20000

CYLINDER HEAD

€349,35

31

080V-025002-1000

SEAL RING, MANIFOLD

€3,82

32

01A0-110005

CLAMP 57

€7,98

33

0GR0-022900

INJECTOR SEAT

€64,96

34

0130-011114-00001

BOLT

€3,82

35

0800-022510

ADJUST SCREW, VALVE CLEARANCE

€7,98

36

0800-022506

ADJUST NUT, VALVE CLEARANCE

€2,78

37

0GR0-0220A0-10000

CYLINDER HEAD

€535,30
